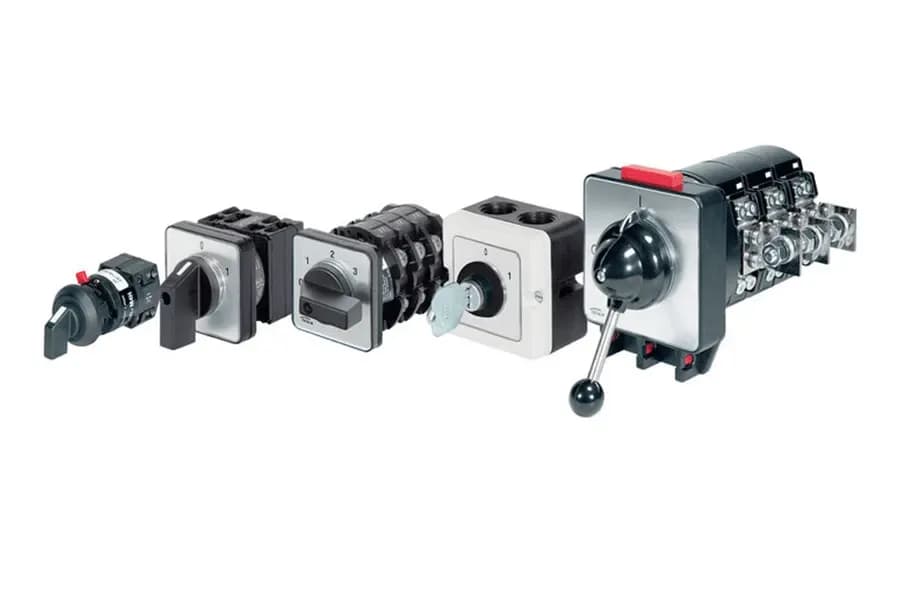

Selector Switches / CAM

Selector Switches: Rotary or toggle switches with multiple positions (e.g., ON-OFF-ON, 3-position) to select different circuit paths or modes (e.g., manual/auto, speed settings).

CAM Switches: A specialized type of selector switch using a cam mechanism to open/close contacts in a precise sequence. Schneider’s CAM switches, such as the Harmony XB5 series, are ideal for multi-circuit control in motor starters, phase reversal, or load switching.

Key Features

• Contact Configuration:
  • Normally Open (NO) / Normally Closed (NC): Configurable contacts for circuit control.
  • Multi-Pole Options: Single or multiple poles (e.g., 2P, 3P, 4P) to control several circuits simultaneously.
• Positions & Detents:
  • 2-Position: Simple ON-OFF or two-mode selection.
  • 3-Position or More: Complex mode switching (e.g., OFF-LOW-HIGH).
  • Detent Mechanism: Tactile “clicks” to lock the switch into position, preventing accidental movement.
• Construction & Materials:
  • Housing: Durable thermoplastic, metal, or flame-retardant materials (e.g., UL94 V-0).
  • Contacts: Silver alloy or gold-plated for high conductivity and arc resistance.
  • Actuator: Rotary knob, lever, or key-operated design for security.
• CAM Mechanism:
  • A rotating cam disc aligns with contact blocks to open/close circuits.
  • Adjustable cam profiles allow custom sequencing (e.g., staggered contact engagement).
• Electrical Ratings:
  • Voltage: 24V DC to 600V AC.
  • Current: Typically 10A–20A for general use; higher ratings for industrial loads.
• Environmental Durability:
  • IP Ratings: IP65/IP67 for dust/water resistance.
  • Temperature Range: -25°C to 70°C for harsh environments.
• Standards Compliance: IEC 60947-3, UL 508, and EN 60204-1 for safety and performance.

Safety Notes

• Load Compatibility: Avoid overloading contacts beyond rated specifications to prevent arcing/failure.
• Lockout/Tagout (LOTO): Use key-operated switches to isolate equipment during maintenance.
• Regular Inspection: Check for contact wear, alignment, and debris in CAM mechanisms.

Comparison with Push Buttons

While push buttons are single-action devices (momentary or maintained), selector switches provide multi-position control for complex sequencing. CAM switches excel in applications requiring synchronized contact operation, such as motor reversing or multi-step processes.
