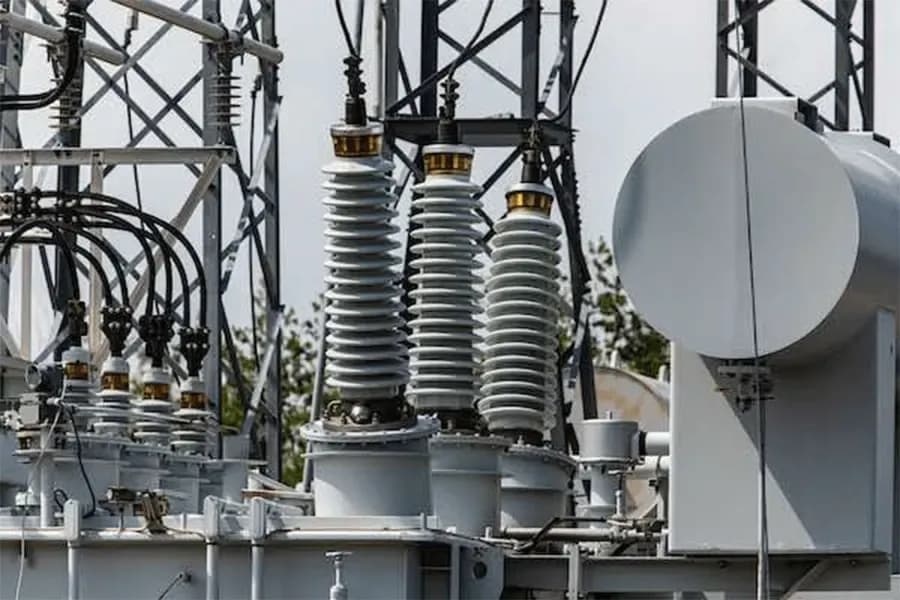

A Current Transformer (CT) is a critical sub-product within the Panel Components category designed to safely measure alternating current (AC) in electrical systems. By stepping down high primary currents to standardized, manageable secondary levels (e.g., 1A or 5A), CTs enable accurate monitoring, metering, and protection without direct contact with high-voltage circuits. They operate on the principle of electromagnetic induction, ensuring galvanic isolation between the primary (measured) and secondary (output) circuits.
A Current Transformer (CT) is a type of instrument transformer that converts high primary currents (e.g., hundreds or thousands of amps) into proportional, low secondary currents (typically 1A or 5A). This allows safe measurement and integration with meters, relays, and control systems. CTs are critical for:
- Safety: Isolate measurement and protection circuits from dangerous high-voltage lines.
- Accuracy: Provide precise current data for energy metering, load monitoring, and fault detection.
- Compliance: Meet regulatory standards for electrical system monitoring and reporting.
Key Features
Current Ratio:
- Defined as the ratio of primary to secondary current (e.g., 100:5). The secondary current is proportional to the primary current, scaled for safe measurement.
- Common secondary outputs: 1A, 5A, or mA-level signals for modern low-power applications.
Accuracy Classes:
- Measurement CTs: High precision (e.g., Class 0.1, 0.2, 0.5) for energy metering and revenue-grade applications.
- Protection CTs: Designed to handle fault currents without saturation (e.g., Class 5P, 10P) for circuit breakers and relays.
Core Materials:
- Laminated Iron Core: Used in protection CTs for high saturation thresholds.
- Nickel Alloy or Amorphous Core: Found in measurement CTs for superior linearity and accuracy.
Safety & Isolation:
- Provides galvanic isolation, protecting equipment and personnel from high-voltage hazards.
- Complies with standards like IEC 61869, ANSI C57.13, and IEEE C57.13.
Form Factors:
- Window-Type (Ring-Type): Installed around a conductor without disconnecting the circuit.
- Bar-Type: A fixed primary conductor (bar) for high-current applications.
- Split-Core: Hinged design for retrofitting onto existing conductors.
- Rogowski Coils: Flexible, air-core CTs for transient or harmonic current measurement.
Burden Rating:
- Specifies the maximum load (impedance) the CT can drive on its secondary without accuracy loss (e.g., 2.5 VA, 5 VA).
Safety Notes
- Never Open-Circuit a Live CT: A disconnected secondary can induce dangerous voltages. Always short-circuit unused CTs.
- Grounding: Properly ground the secondary to prevent insulation failure.
Comparison with Voltage Transformers (VTs)
While CTs step down current, Voltage Transformers (VTs) step down voltage for measurement. Both are essential for comprehensive power system monitoring.
